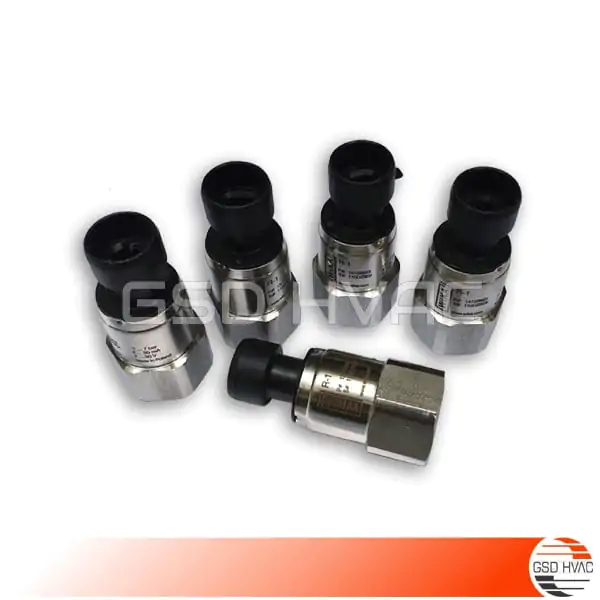

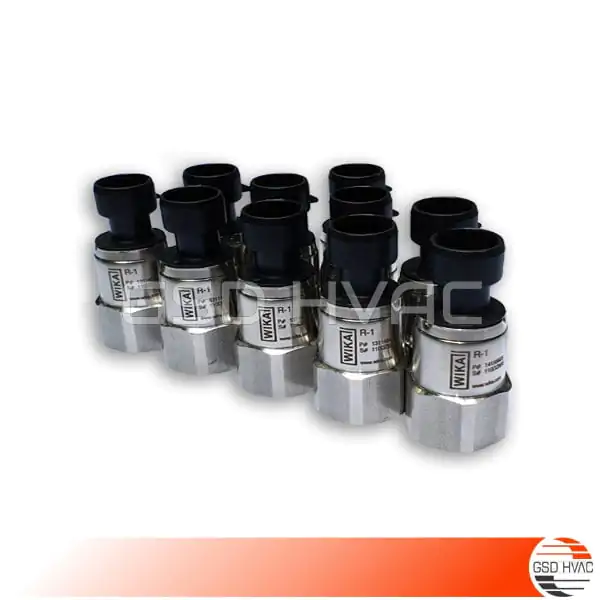

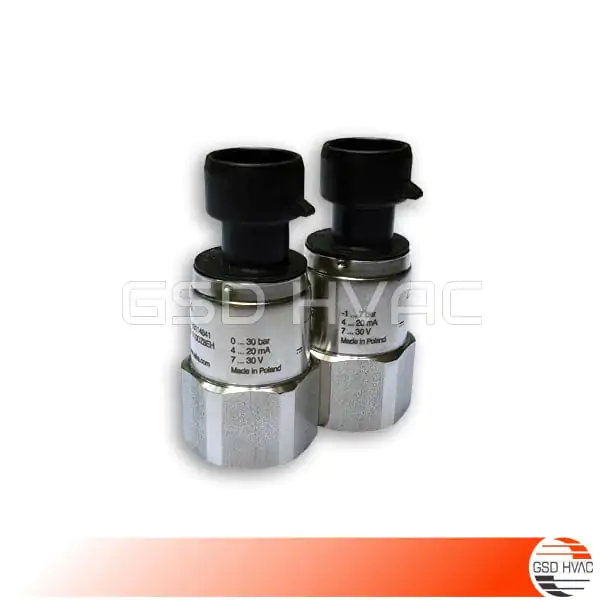

WIKA R-1 Pressure Transmitter 0…40 bar

Description

WIKA R-1 Pressure Transmitter 0…40 bar

Pressure Transmitter WIKA R-1 Specifications:

• Refrigeration and Air-Conditioning applications Pressure Transmitters
• Accuracy rate: ≤ 2 %
• Measuring range: 0…40 bar
• Connection: 7/16-20 UNF-2B Schrader
• Output: 4 … 20 mA, 2-3 cables
• Power supply: DC 7…30 V
• Operating conditions: IP67
• Electrical Connection: Metri-Pack series 150
• Commonly Used on Trane, YORK, Carrier, Climaveneta, Lennox Rooftop chiller and rooftop models.


Application Area in Refrigeration and Air-Conditioning Technology

The model R-1 pressure transmitter (0…40 bar) has been optimally designed for the specific requirements of refrigeration and air-conditioning applications. Its monolithic construction dispenses with the need to use seals on the process side. This enables the model R-1 to be used with all typical refrigerants.

Excellent Reliability Quality

The hermetically welded, dry thin-film measuring cell ensures long-term leak tightness. Moreover, these efficient cells, made with a sputtering technique, feature high long-term stability and a very high burst pressure.

Attractive Price/Performance Ratio

The Model R-1 pressure transmitter (0…40 bar) combines innovative design and the highest quality standards. The instrument has successfully passed a test process, specifically matched to the harsh demands of the refrigeration and air-conditioning market. The production on highly flexible production lines also offers a very attractive price-performance ratio with higher quantities.
