Description

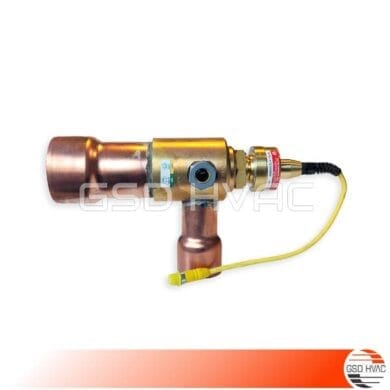

Trane VAL12005 Valve; Expansion
VAL12005 Valve; Expansion Details; 3.125 ODS X 2.130 OD; M12 Input
- Trane Chiller Electronic Expansion Valve, SEHI-400, 3.125 ODS X 2.130 OD; M12 Input
- Original Trane OEM Components
- Trane Part Number: VAL12005
- Model Number: X15111236060 / X15111236-060
- Controller: MOD02688
- Commonly Used on Trane Series R™, Sintesis™ Excellent, Sintesis™ Prime, and Stealth™ Chiller Models
- Replaces / Supersedes: VAL08404, VAL08730, VAL-12005
Chiller documentation download links for the Electronic Expansion Valve (EXP);
- GVAF Chiller Model Valve; Expansion (Product Catalog, Sales Brochure, Installation Operation Maintenance)
- GVWF Chiller Model Valve; Expansion (Product Catalog, Sales Brochure, Installation Operation Maintenance)
- RTAC Chiller Model Valve; Expansion (Product Catalog, Sales Brochure, Installation Operation Maintenance)
- RTAF Chiller Model Valve; Expansion (Product Catalog, Sales Brochure, Installation Operation Maintenance)
- RTAE Chiller Model Valve; Expansion (Product Catalog, Sales Brochure, Installation Operation Maintenance)
Expansion Valves (EXV.)
Expansion valves are devices used to control the refrigerant flow in a refrigeration system. Specifically, they help to facilitate the change of higher pressure of liquid refrigerant in the condensing unit to lower pressure gas refrigerant in the evaporator.
In this context, the term “low side” is used to indicate the part of the system that operates under low pressure, which is the evaporator. Conversely, the “high side” is used to indicate the part of the system that operates under high pressure, namely the condenser.
Moreover, there are basically four types of valves that are in use. These include:
- Firstly, Electronic Expansion Valves
- Secondly, Thermostatic Expansion Valves
- Thirdly, Capillary Tubes
- Lastly, Float Valves
