TDR0025E Pressure Transducer

Description

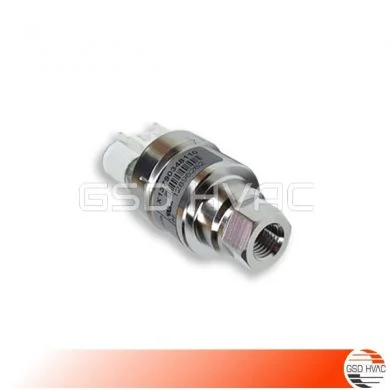

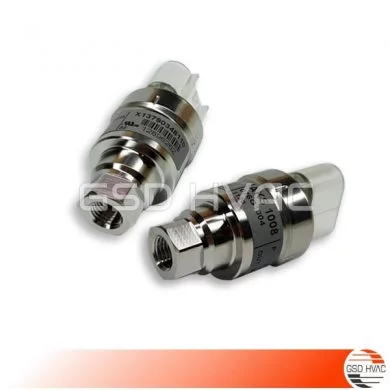

Trane TDR0025E Pressure Transducer (X13790348110)

Pressure Transducer TDR0025E details;

• Trane Chiller Pressure Transducer (PX) LLID 0-475 PSI, AKS 1008 0.25-18 UNF, M-Pack, 1/4 SAE
• Original Trane OEM Components
• Trane Part Number: TDR0025E
• Model Number: X13790348110 / X13790348-11
• Wire Harness Adapter Kit: KIT12559
• Commonly Used on Trane Sintesis™ Screw  Air-Cooled Chiller Models
• Replaces / Supersedes: TDR-25E / TDR-025E / TDR-0025E / TDR735 / TDR0735 / TDR00735

Chiller documentation for the AKS 1008 060G455905 can be downloaded from the below links;

• Trane Chiller Model RTAF Pressure Transducer (Product Catalog, Brochure, Installation Operation Maintenance IOM)

Trane Sintesis™ Prime / Air-cooled Chillers with Variable Vi Screw Compressors

Sintesis™ Prime series provides reliable temperature control in the most demanding applications. Exceptional efficiency keeps your operating costs and environmental impact low. Smart and easy-to-use controls ensure you get the best out of your system day after day, year after year.

RTAF XSE-XSS goes two steps further in part load efficiency improvement. It features the latest Trane screw compressor with Variable Volume Index (Variable Vi). Vi compressor allows the equipment to operate at the most appropriate pressure ratio to reach remarkable efficiency levels.

The compressors are equipped with a permanent magnet motor. The permanent magnet motor further enhances part load efficiencies by the much higher motor efficiency across the load curve of the compressor. The complete range of sizes therefore achieves excellent part load efficiencies to comply to. And even exceed the current Ecodesign requirements for Comfort or Process Chillers.
We realize that our chillers can run day and night in noise-sensitive environments. To accommodate the lowest noise levels possible, we integrated a noise-attenuating muffler in this high-end screw compressor. And we optionally further reduce noise by the use of bellow noise isolators.
