SEN02129 Liquid Level Sensor

Description

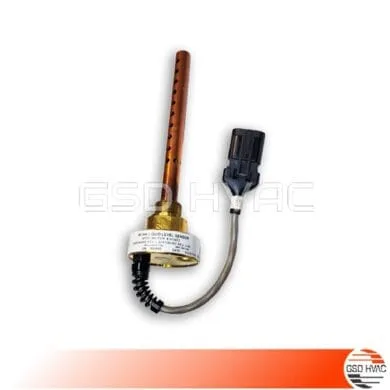

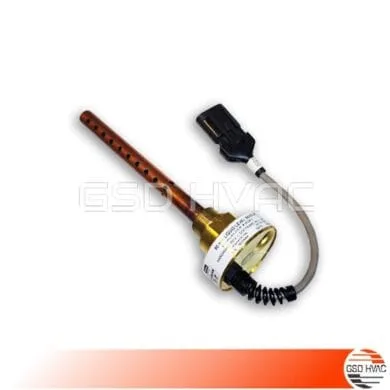

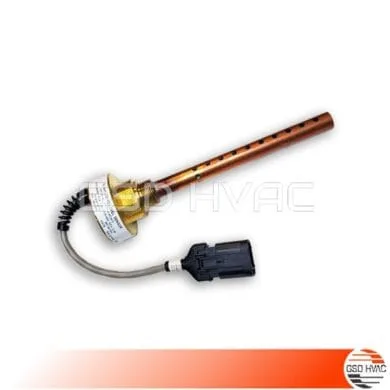

Trane SEN02129 Liquid Level Sensor (90mm)

• Sensor details, SEN02129 Sensor; 90mm Liquid Level, Top Mount, Ships With GKT04098
• Trane Chiller Liquid Level Sensor 90mm, Top Mount, Ships With GKT04098 gasket
• Original Trane OEM Components
• Trane Part Number: SEN02129
• Ref No: X13790508020 / X13790508-020
• Wire Harness Adapter Kit: KIT12559/KIT19458
• Adaptor: ADP01123
• Commonly Used on Trane Series R™ Chiller Models.
• Replaces / Supersedes: SEN01552, SEN1552, SEN-1552, SEN2129, SEN-2129

Chiller documentation for the 90mm Liquid Level Sensor can be downloaded from below links;

• RTWD Chiller Model 90mm Liquid Level Sensor (Product Catalog, Sales Brochure, Installation Operation Maintenance)
• RTWF Chiller Model 90mm Liquid Level Sensor (Product Catalog, Sales Brochure, Installation Operation Maintenance)

Trane RTWD Water-Cooled Screw Chillers and Water/Water Heat Pumps

The Trane RTWD chiller is part of the Series R Helical Rotary Screw Chillers, designed to offer reliability, flexibility, and energy efficiency for a wide range of cooling applications. This model is particularly suited for commercial and industrial environments, providing precise temperature control and meeting sustainability goals.

Key Features and Benefits:

• Low-GWP Refrigerants: Utilizes R-513A for cooling and R-515B for heating, offering a 55% reduction in global warming potential (GWP) compared to R-134a, making it an environmentally friendly option.
• Direct-Drive Compressor Design: Reduces the number of moving parts, enhancing reliability and energy efficiency, and lowering operating and life-cycle costs.
• Wide Operating Temperature Range: Equipped with advanced controls that adapt to various cooling and heating demands, ensuring optimal performance in different conditions.
• Compact Size: Simplifies installation and replacement, as the unit can fit through standard double door openings, making it easier to install in existing mechanical rooms without requiring additional floor space or structural modifications.
• Symbio™ 800 Controllers: Enhances equipment performance and enables wireless connectivity for improved integration with building automation systems. Assists in performing energy efficiency and performance analyses.
• Variable Evaporator Flow Compensation: Improves control stability and energy savings in variable flow applications.
• Dual Independent Refrigerant Circuits and Infinite Unloading Compressor: Ensures reliable operation and efficient performance under varying loads.

Overall, the Trane RTWD chiller is a versatile and efficient solution for cooling and heating applications, designed to meet the needs of modern commercial and industrial facilities while promoting environmental sustainability.
