RES0077E Resistor 1.15 Ohms

Description

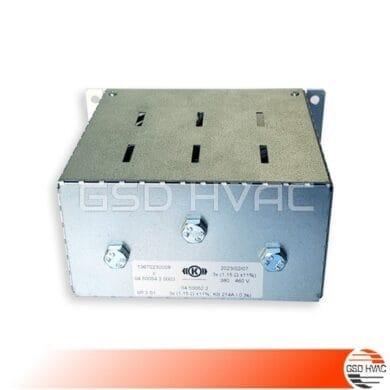

Trane RES0077E Resistor 1.15 Ohms (X13670230008)

Transition RES0077E Resistor 1.15 Ohms details;

• Trane Chiller Transition Resistor 3 x (1.15 ohms + -11%) 214A, 380-460V/50-60Hz
• Original Trane OEM Components
• Trane Part Number: RES0077E
• Model Number: X13670230008 / 13670230008
• Commonly Used on Trane Series R™, Sintesis™ Excellent, Sintesis™ Prime, Chiller Models.
• Replaces / Supersedes: RES77E, RES077E, RES-077E

Chiller documentation can be downloaded from below links;

• Trane Chiller Model RTAC Transition Resistor 1.15 Ohms (Product Catalog, Sales Brochure, IOM)
• Trane Chiller Model RTAD Transition Resistor 1.15 Ohms (Product Catalog, Sales Brochure, IOM)
• Trane Chiller Model RTAF Transition Resistor 1.15 Ohms (Product Catalog, Sales Brochure, IOM)
• Trane Chiller Model RTWD/RTUD Transition Resistor 1.15 Ohms (Product Catalog, Sales Brochure, IOM)

Resistor

The resistor is a passive electrical component that creates resistance in the flow of electric current. In almost all electrical networks and electronic circuits they can be found. The resistance is measured in ohms (Ω). An ohm is the resistance that occurs when a current of one ampere (A) passes through a resistor with a one volt (V) drop across its terminals. The current is proportional to the voltage across the terminal ends. This ratio is represented by Ohm’s law.

Resistors are used for many purposes. A few examples include limiting electric current, voltage division, heat generation, matching and loading circuits, gain control, and setting time constants. They are commercially available with resistance values over a range of more than nine orders of magnitude. They can be used as electric brakes to dissipate kinetic energy from trains, or be smaller than a square millimeter for electronics.
