MOD01425 Module MCSP-Compressor

Description

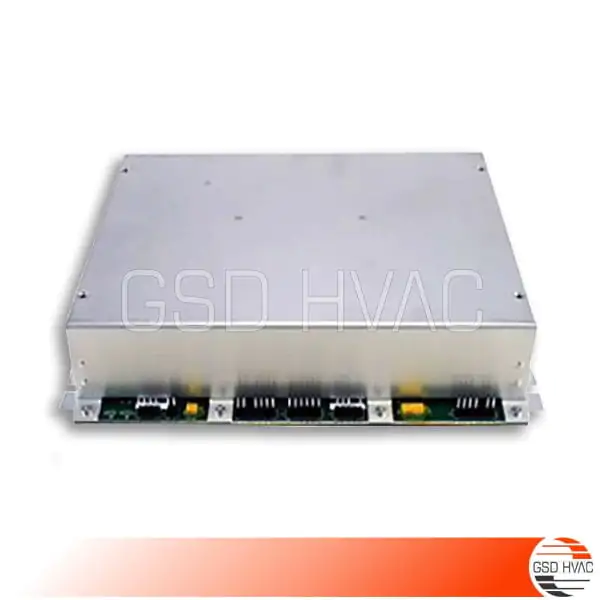

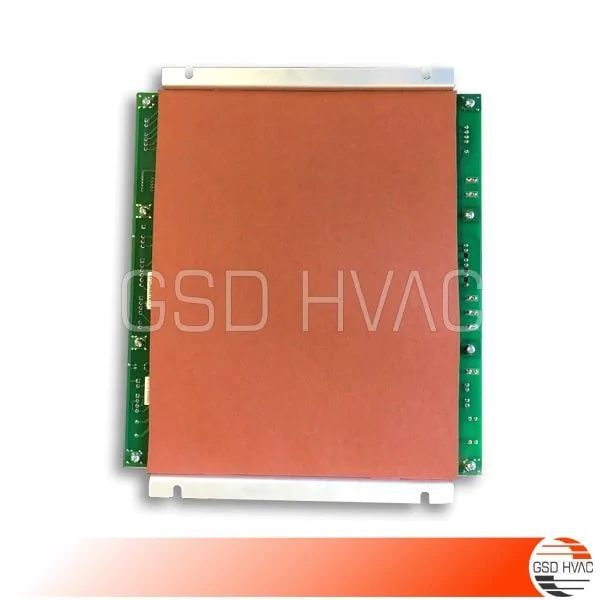

Trane MOD01425 Module MCSP-Compressor Regulation (X13650477130)

Trane MCSP-Compressor Regulation Module MOD01425 details; (Motor Compressor Start and Protection – Safety, protection, and control of the helical-rotary compressor and its components)

• Trane Chiller 70-125 Ton MCSP-Compressor Regulation Module, Controller used with Adaptive Control Module
• Original Trane OEM Components
• Trane Part Number: MOD01425
• Model Number: X13650477130 / X13650477-13
• Commonly Used on Trane RTAA, RTAB, RTAD Air-Cooled, RTXA, RTWA, RTWB Water-Cooled Screw Chiller Models
• Replaces / Supersedes: MOD01200, MOD01439, MOD-1425, MOD1425

Chiller documentation for MCSP-Compressor Regulation Module can be downloaded from below links;

• Trane Chiller Model RTAA MCSP-Compressor Regulation Module (Product Catalog, Brochure, IOM)
• Trane Chiller Model RTAB MCSP-Compressor Regulation Module (Product Catalog, Brochure, IOM)
• Trane Chiller Model RTAD MCSP-Compressor Regulation Module (Product Catalog, Brochure, IOM)
• Trane Chiller Model RTWA MCSP-Compressor Regulation Module (Product Catalog, Brochure, IOM)
• Trane Chiller Model RTXA MCSP-Compressor Regulation Module (Product Catalog, Brochure, IOM)
• Trane Chiller Model RTWB MCSP-Compressor Regulation Module (Product Catalog, Brochure, IOM)

MCSP is Motor Compressor Start and Protection – Safety, protection, and control of the helical-rotary compressor and its components Module.

To avoid death, injury, equipment or property damage, the following recommendations should be observed during maintenance and service visits:

1. The maximum allowable pressures for system leak testing on low and high pressure side are given in the chapter “Installation”. Always provide a pressure regulator.

2. Disconnect the main power supply before any servicing on the unit.

3. Service work on the refrigeration system and the electrical system should be carried out only by qualified and experienced personnel.
