Description

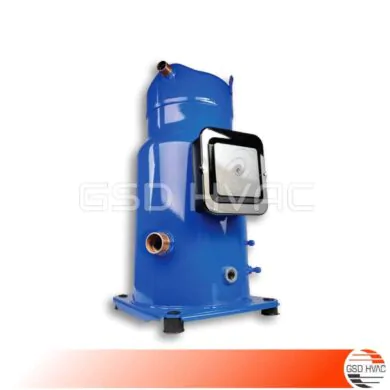

Trane COM09841 Hermetic Scroll Compressor
Trane CSHN 315K Scroll Compressor COM09841 details;
- Trane Chiller and Rooftop Units Scroll Compressors
- Trane Part Number: COM09841
- Connection Type: Brazed
- Power Supply: 380-415/50/3 – 460/60/3
- Cooling Capacity: 78 Kw
- Suction and Discharge: 1″5/8 – 1″1/8
- Refrigerant: R410A
- Commonly Used on Trane Airfinity™, Aquasteam 2, Aquastream 3G™, Balance™, City™ Advantage, Conquest™, Flex™, I-Cube, Lift™, Lyra™, Sintesis™ Advantage, Sintesis™ Balance, Exergy™, Voyager™, equipment models
- Replaces / Supersedes: COM9004E, COM-9004E, COM09051, COM9051, COM10556, COM-9841
Equipment documentation for CSHN315K Scroll Compressor download links;
- Trane Chiller Model CGAM CSHN315 Scroll Compressor (Product Catalog, Sales Brochure, IOM)
- Trane Chiller Model CXAM CSHN315 Scroll Compressor (Product Catalog, Sales Brochure, IOM)
- Trane Rooftop Model YKD-YKH CSHN315 Scroll Compressor (Product Catalog, Sales Brochure, IOM)
- Trane Rooftop Model DKD-DKH CSHN315 Scroll Compressor (Product Catalog, Sales Brochure, IOM)
- Trane Rooftop Model Airfinity™ CSHN315 Scroll Compressor (Product Catalog, Sales Brochure, IOM)
Trane CSHN 315 Universal Scroll Compressors are designed to serve as quick, easy replacements for most 7½ to 15 ton commercial air conditioning scroll compressors. These compressors come with a bolt pattern, suction and discharge lines, and performance characteristics that match up directly with some competitors’ products.
Control voltage of external motor protection module must be checked before crossing to Model No with 24V ac or 115/230V motor protection module.
Intermediate Discharge Valves (IDVs) are mechanical valves that improve the partload efficiency of air conditioning systems. The Trane scroll range with IDVs is backwards compatible with existing Danfoss scrolls to reduce complexity and save time during installation.
